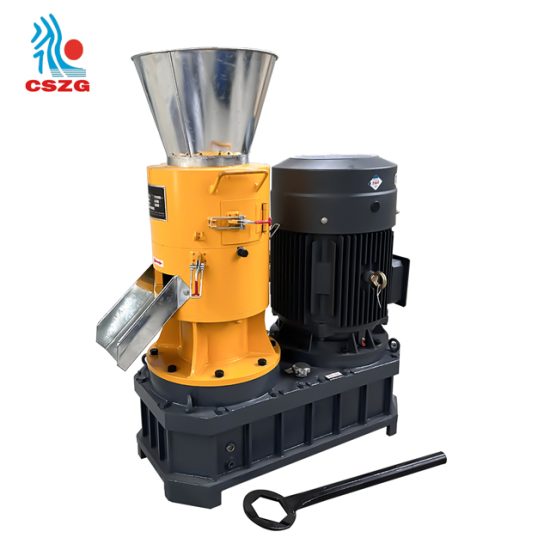

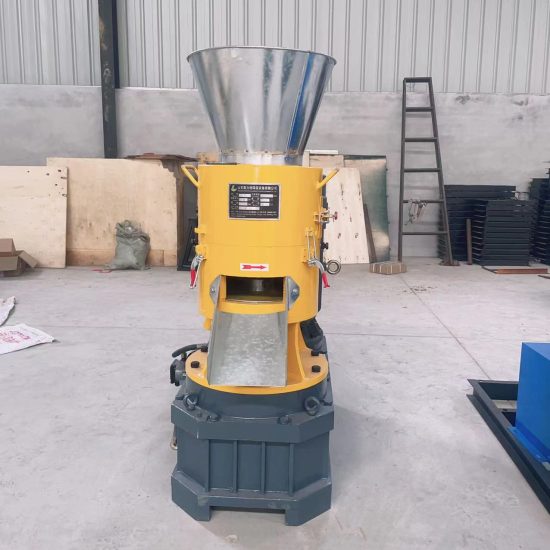

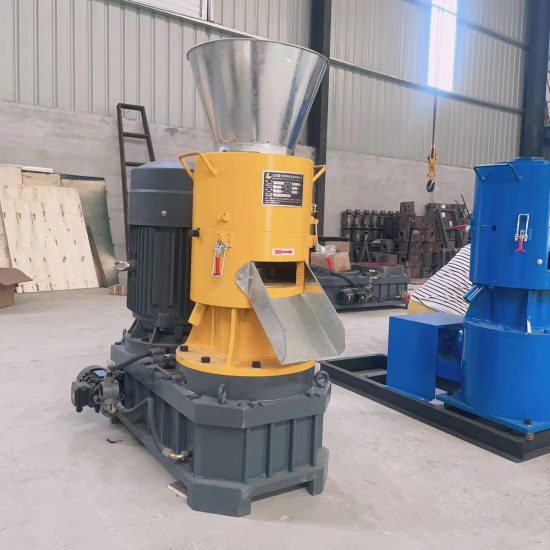

Small flat mold pellet machine
Why Choose Our Small Flat Mold Pellet Machine?
1. Fully Automatic Operation
Our small flat mold pellet machine features strong automation and stable performance. It requires no special care or constant human supervision, making it ideal for continuous industrial production. Once started, it can run 24 hours without stopping.
2. Enhanced Discharging System
The optimized structure increases the discharging area, significantly boosting production output. Compared to traditional machines, our small flat mold pellet machine increases production capacity by over 30%.
3. Advanced Roller Structure
Unlike conventional machines, this small flat mold pellet machine uses a roller without locking mechanisms. This design reduces grease usage, minimizes wear, and extends bearing life, lowering maintenance costs.
4. Industrial-Grade Gearbox
Equipped with a heavy-duty gearbox, the small flat mold pellet machine offers 5–10 times enhanced gear strength. It ensures low failure rates and delivers unbeatable long-term stability.
5. Circulating Lubrication System
Say goodbye to high grease consumption. The intelligent gear oil circulation system of this small flat mold pellet machine not only protects the bearings but also cuts down lubrication costs by 50%.
| PRODUCT MODEL MOLD | |||||
| MODEL | YIELD(KG) | POWER(KW) | MOLDAPERTURE SIZE(MM) | PACKAGE SIZE (MM) |
WEIGHT(KG) |
| DZLP-120 | 80-150KG | 3-4KW | 2.5-6MM | 820*400*720 | 97KG |
| DZLP-150 | 100-200KG | 4KW | 2.5-6MM | 820*400*720 | 110KG |
| DZLP-200 | 200-300KG | 7.5-4KW | 2.5-6MM | 1000*480*850 | 210KG |
| DZLP-250 | 100-400KG | 11-4KW | 2.5-6MM | 1150*500*1000 | 280KG |
| DZLP-260 | 100-400KG | 16KW | 2.5-6MM | 1150*500*1000 | 400KG |
| DZLP-300 | 200-800KG | 22KW | 2.5-6MM | 1230*630*1030 | 560KG |
| DZLP-350 | 450-1000KG | 30KW | 3-8MM | 1300*550*1250 | 720KG |
| DZLP-450 | 600-1500KG | 55KW | 3-8MM | 1650*700*1650 | 1500KG |
Raw Material
Key Points
1. Vertical Flat Die Structure
The vertical layout of the small flat mold pellet machine allows direct feeding and broader application range. It offers excellent heat dissipation and is ideal for dense and fibrous biomass materials.
2. Double Die System
Our double-die innovation increases efficiency and reduces operational costs. This results in the highest performance among machines in its class.
3. Premium Die Material
The flat dies are made from wear-resistant alloy steel, ensuring extended lifespan and reduced downtime—another key advantage of our small flat mold pellet machine.
4. Heavy Machine Body
Heavier machinery means better durability. The robust build of our small flat mold pellet machine ensures long-term stability and extended usage life.
5. Non-Stop Performance
Built for industrial-grade durability, this small flat mold pellet machine supports continuous 24-hour operation. With its automatic intermittent lubrication system, it minimizes component wear and maximizes productivity.
Customer visit
FAQ
1. What’s your minimum order? Can I get samples?
Our minimum order is 1 set. Due to the nature of the small flat mold pellet machine, sample delivery is not available, but we’ll send you detailed catalogs and warmly welcome you to visit our factory.
2. What’s the delivery time?
Typically, our small flat mold pellet machine ships within 30 days. For customized models, we’ll confirm delivery time during the negotiation.
3. Can I customize the machine with my logo?
Absolutely! We can tailor the small flat mold pellet machine to your needs, including placing your company logo on the equipment.
4. How do you support overseas customers after sales?
We provide 12 months warranty. If there’s any issue, we immediately dispatch spare parts via international express to ensure minimal downtime for your small flat mold pellet machine.
5. Will you help with installation?
Each small flat mold pellet machine is tested before shipment and easy to install. If needed, we offer on-site installation services—travel and labor costs are borne by the customer.
6. What kind of service can I expect?
24/7 online technical support Global shipping & delivery On-site service for full biomass processing systems Accepted trade terms: FOB, CIF, CFR, FCA Payment via T/T, L/C in USD or RMB Multilingual customer service available
